System Design from Scratch: Scaling from 100 to 100,000 Users

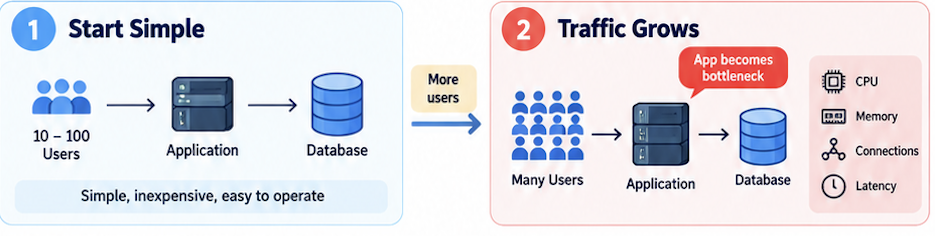

Starting Point: A Simple Application

Imagine we have just launched an application.

We only have:

10–100 users

The architecture can be extremely simple:

The application handles things such as:

At this scale, this architecture may work perfectly well.

We don't need:

• 20 application servers
• Kubernetes
• multiple databases
• queues
• caching
• sharding
• complicated distributed systems

This is an important System Design lesson:

Do not add complexity before you have a problem that requires it.

Our system is simple, inexpensive, and easy to operate.

Then the Application Becomes Popular

Now imagine our application grows from:

100 users

to:

100,000 users

Our architecture is still:

Now we start asking:

What could become a bottleneck?

Let's assume the application server becomes the first bottleneck.

For every incoming request, the application consumes resources such as:

• CPU
• Memory
• Network
• Threads / Processes
• File descriptors
• Database connections

With 100 users, perhaps CPU utilization was:

10–20%

But with increasing traffic:

1,000 users
      ↓
CPU 40%
10,000 users
      ↓
CPU 75%
100,000 users
      ↓
CPU 95–100%

Now requests start waiting.

Latency increases.

Eventually:

So we have identified our first problem:

One application server cannot handle all the incoming traffic.

Step 1: Scale the Application

There are two obvious possibilities.

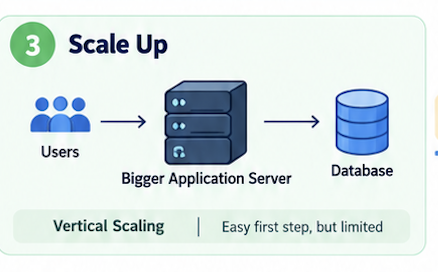

Option 1 — Vertical Scaling

We could make the existing application server larger.

For example:

4 CPU
16 GB RAM

becomes:

16 CPU
64 GB RAM

So:

This is called:

Vertical Scaling / Scale Up

It is often the easiest thing to do first.

But eventually there is a limit.

We cannot keep saying:

More CPU
More RAM
More CPU
More RAM
More CPU
More RAM

forever.

And there is another problem.

We still have:

             ONE
        Application Server

If that machine fails:

So instead of making one machine endlessly bigger, we can add more application servers.

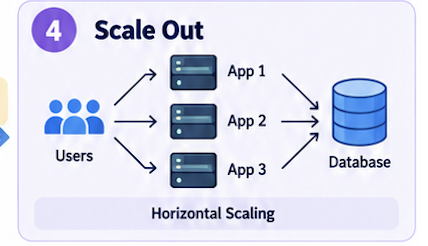

Horizontal Scaling

Instead of:

we want:

            App 1
           ↗
Users →    App 2
           ↘
             App 3
               ↓
            Database

Now we can distribute the work.

Instead of one application server handling:

10,000 requests/sec

perhaps we have:

App 1 → 2,500 requests/sec
App 2 → 2,500 requests/sec
App 3 → 2,500 requests/sec
App 4 → 2,500 requests/sec

This is:

Horizontal Scaling / Scale Out

But now we have created a new problem.

New Problem: Which Application Server Should Receive the Request?

Suppose a user sends a request:

We have:

App 1
App 2
App 3
App 4

Who decides where the request goes?

The user should not have to know:

Send request 1 → App 1
Send request 2 → App 3
Send request 3 → App 2

We need something in front of the application servers.

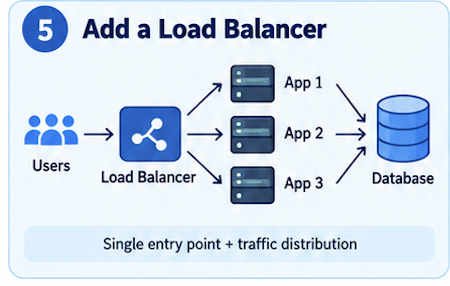

That gives us our first new component:

Load Balancer

Our architecture becomes:

         100,000 Users
                ↓
          Load Balancer
        ↙       ↓       ↘
     App 1    App 2    App 3
        \       |       /
             Database

Now the Load Balancer can distribute incoming traffic across multiple application instances.

For example:

Request 1 → App 1
Request 2 → App 2
Request 3 → App 3
Request 4 → App 1

We have solved our first scaling problem:

The application layer can now scale horizontally.

If traffic grows:

We don't necessarily have to redesign the entire application.

But Our Solution Created New Problems

We started with:

As traffic increased, one application server could no longer handle all the requests.

So we scaled horizontally:

               App 1
              ↗
Users        → App 2
              ↘
                App 3

But that created a new problem:

Which application server should receive each request?

So we introduced a:

Load Balancer

Our architecture became:

           100,000 Users
                  ↓
            Load Balancer
          ↙       ↓       ↘
       App 1    App 2    App 3
          \       |       /
               Database

The Load Balancer gives users a single entry point and distributes incoming traffic across multiple application servers.

We have solved one problem:

The application layer can now scale horizontally.

But introducing the Load Balancer creates a new set of questions.

And this is where our next System Design discussion begins.

Problem 2: How Should the Load Balancer Distribute Traffic?

Suppose all three application servers are healthy:

App 1 → Healthy
App 2 → Healthy
App 3 → Healthy

A new request arrives:

Which application server should receive it?

Should we simply send requests one after another?

Request 1 → App 1
Request 2 → App 2
Request 3 → App 3
Request 4 → App 1

This is Round Robin.

But what happens if:

App 1 → 100 active connections
App 2 → 20 active connections
App 3 → 70 active connections

Perhaps the next request should go to:

App 2

This introduces Least Connections.

And what if the servers have different capacities?

App 1 → 16 CPU
App 2 → 16 CPU
App 3 → 4 CPU

Sending exactly the same amount of traffic to every server may not make sense.

This introduces Weighted Load Balancing.

So our first Load Balancer question becomes:

What routing algorithm should we use?

Problem 3: What Happens When an Application Server Fails?

Suppose:

App 1 → Healthy
App 2 → Healthy
App 3 → Failed ❌

If the Load Balancer continues sending traffic to App 3:

then having multiple application servers doesn't help very much.

The Load Balancer needs to know:

• Which servers are healthy?
• Which servers are unhealthy?

This introduces:

Health Checks

The Load Balancer might periodically check:

App 1 → /health → 200 OK
App 2 → /health → 200 OK
App 3 → /health → Failure

Now:

             Load Balancer
               ↙       ↘
            App 1     App 2
            App 3 ❌

The Load Balancer temporarily removes App 3 from the backend pool.

When App 3 becomes healthy again:

App 3 → /health → 200 OK

it can be added back.

Now new questions appear:

• How frequently should health checks run?
• How many failed checks before a server is considered unhealthy?
• What exactly should /health check?
• When should a recovered server start receiving traffic again?

Problem 4: What Happens to User Sessions?

Suppose:

Request 1 → App 1

and App 1 stores the user's session locally.

Then:

Request 2 → App 2

But App 2 doesn't know anything about the session stored on App 1.

Now we have another problem.

One possible solution is:

Sticky Sessions

User A → App 1
User A → App 1
User A → App 1

The Load Balancer keeps sending the same user to the same application server.

But what happens if:

App 1 fails?

Or App 1 gets much more traffic than the other servers?

A more scalable design is often:

Application Servers = Stateless

and store shared state outside the individual application server.

Conceptually:

                App 1
               ↗
User → LB →    App 2
               ↘
                 App 3
                   ↓
              Shared State

Now any request can go to any application server.

This gives us an important System Design principle:

Stateless application servers are generally easier to scale horizontally.

Problem 5: Does the Load Balancer Need to Understand the Request?

Suppose we only need to distribute TCP connections.

The Load Balancer may only need information such as:

• IP Address
• Port
• TCP / UDP

This brings us to:

Layer 4 Load Balancing

Conceptually:

But what if we want to route based on the HTTP request?

For example:

/api/users  → User Service
/api/orders → Order Service
/api/chat   → AI Service

Now the Load Balancer needs to understand HTTP.

This brings us to:

Layer 7 Load Balancing

                   /users  → User Service
                  ↗
User → Layer 7 LB ─→ /orders → Order Service
                  ↘
                    /chat   → AI Service

So another design question becomes:

Do we need Layer 4 or Layer 7 load balancing?

Problem 6: What if the Load Balancer Itself Fails?

This is extremely important.

Initially we had:

The application server was a:

Single Point of Failure

So we added multiple application servers.

Now:

But if there is only:

ONE Load Balancer

then we may simply have moved the Single Point of Failure.

So the Load Balancer layer itself must also have:

• Redundancy
• Failover
• High Availability

Conceptually:

              Users
                 ↓
        Load Balancer Layer
          ↙             ↘
        LB 1            LB 2
          \             /
           \           /
          App 1 App 2 App 3

This gives us another important principle:

Do not remove a Single Point of Failure by simply creating a new Single Point of Failure somewhere else.

Now Our Architecture Has Evolved

We started with:

Then traffic increased:

Then we went deeper:

So the progression so far is:

And only after this deep dive...

We return to our architecture:

Now we ask the next major architecture question:

Great — we have scaled the application layer. But every application server is still talking to the same database. What happens when the database becomes the bottleneck?

Problem → Solution → New Problem → Deep Dive → Evolve the Architecture

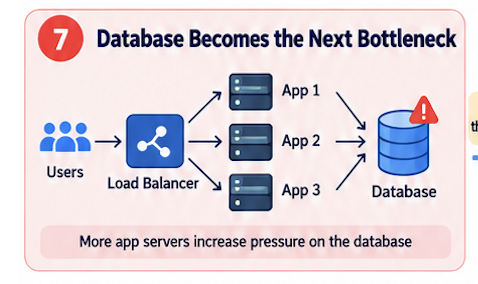

Yes. The third problem is now the database.

After Step 1, our architecture is:

100,000 Users
      ↓
Load Balancer
      ↓
┌────────┬────────┬────────┐
App 1    App 2    App 3    App 4
└────────┴────────┴────────┘
      ↓
   Database

We solved the application-server bottleneck by scaling the application horizontally.

But now all those application instances are sending traffic to one database.

So eventually:

App 1 ──┐
App 2 ──┤
App 3 ──┼──→ Database
App 4 ──┤       ↑
App 5 ──┘    Bottleneck

The database may start experiencing:

• High CPU
• High memory usage
• Too many connections
• Slow queries
• High disk I/O
• Lock contention
• Increasing query latency

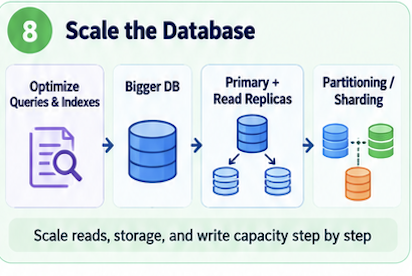

So let's solve the database problem one step at a time.

Step 2A: Optimize the Existing Database

Before adding more database servers, ask:

Is the database actually too small, or are we using it inefficiently?

Suppose the application executes:

SELECT * FROM users WHERE email = 'user@example.com';

and we have:

100 million users

If email is not indexed, the database may need to scan a huge amount of data.

Conceptually:

As traffic grows:

One inefficient query
        ×
Thousands of requests/sec
        =
Database overload

So one of the first things we should investigate is:

• Slow queries
• Query execution plans
• Missing indexes
• Unnecessary queries
• Too much data being returned
• Database connection usage

Then we add appropriate indexes.

For example:

CREATE INDEX idx_users_email
ON users(email);

Now conceptually:

The architecture has not changed:

We simply made the database work more efficiently.

This is an important System Design lesson:

Before scaling infrastructure, make sure the current infrastructure is being used efficiently.

But Eventually Optimization Is Not Enough

Imagine we optimize:

Queries ✔
Indexes ✔
Connections ✔
Database schema ✔

But traffic continues growing.

Database CPU is still:

90–95%

Memory is under pressure.

Disk I/O is high.

Now we have a genuine capacity problem.

So the next simplest solution is:

Step 2B: Vertical Scaling the Database

Suppose the database currently runs on:

4 CPU
16 GB RAM
500 GB SSD

We can move it to:

16 CPU
64 GB RAM
Faster SSD/NVMe

Architecture:

100K Users
    ↓
Load Balancer
    ↓
App App App App
    ↓
 ┌─────────────┐
 │   Bigger    │
 │  Database   │
 │             │
 │ More CPU    │
 │ More RAM    │
 │ Faster Disk │
 └─────────────┘

This is:

Vertical Scaling / Scale Up

And this is often a perfectly reasonable next step.

But We Still Have Another Problem

Even after making the database bigger, look carefully at our architecture:

Users
  ↓
Load Balancer
  ↓
App 1  App 2  App 3  App 4
  ↓      ↓      ↓      ↓
       Database

There is still only:

ONE DATABASE

What happens if it crashes?

So we now have a:

Single Point of Failure

This leads naturally to our next step:

Step 2C: Database Replication

Instead of:

we keep copies:

            Primary Database
                    │
              Replication
             ↙      ↓      ↘
        Replica 1 Replica 2 Replica 3

Now:

Replication can help with:

Availability
Disaster recovery
and sometimes
Read scalability

But now something interesting happens.

Suppose our workload is:

90% Reads
10% Writes

All the reads are still hitting the primary.

Why?

We already have replicas.

Could we use them?

Yes.

And that creates the next step:

Writes → Primary Database
Reads → Replica 1
        Replica 2
        Replica 3

That's Read Replicas.

100K Users
    ↓
Load Balancer
    ↓
Multiple App Servers
    ↓
 ┌─────────────────────┐
 │    Database Layer   │
 ├─────────────────────┤
 │ Primary   ← Writes  │
 │ Replica 1 ← Reads   │
 │ Replica 2 ← Reads   │
 │ Replica 3 ← Reads   │
 └─────────────────────┘

This works very well when the system is read-heavy because the read traffic can be distributed across replicas. An important distinction here: replication is the mechanism for maintaining copies, while a read replica is specifically a replica used to serve read traffic.

So our evolution is:

PROBLEM 1
Application cannot handle traffic
        ↓
Scale Application
        ↓
Load Balancer + Multiple App Servers
PROBLEM 2
Database becomes bottleneck
        ↓
Optimize Queries + Indexes
        ↓
Still not enough
        ↓
Vertical Scale Database
        ↓
Still one database / SPOF
        ↓
Replication
        ↓
Read-heavy workload
        ↓
Read Replicas

But now our application keeps growing.

Step 2D: The Primary Database Becomes the Write Bottleneck

Suppose our traffic changes.

Initially:

90% Reads
10% Writes

Read replicas helped a lot.

But now our application grows to the point where we receive:

Thousands of writes/sec

For example:

Create user
Send message
Update profile
Create order
Upload document metadata
Store conversation
Write transaction

The problem is:

Reads  → Replica 1
         Replica 2
         Replica 3

Writes → Primary

We can distribute reads.

But all writes are still going to:

ONE PRIMARY DATABASE

So:

App 1 ─────┐
App 2 ─────┤
App 3 ─────┼────→ Primary DB
App 4 ─────┤          ↑
App 5 ─────┘      Bottleneck

Now the primary may experience:

High CPU
High disk I/O
Lock contention
High write latency
Too many concurrent transactions
Replication pressure

We have hit another scaling limit.

But There Is Another Problem Too: Data Size

Suppose we started with:

100,000 users

and each user had a small amount of data.

No problem.

But over time:

100K users
↓
1M users
↓
10M users
↓
100M users

Now imagine we have:

Users
Messages
Conversations
Orders
Documents
Events

and the database contains:

1 billion rows

Eventually:

One database server

has to handle:

All the data
+
All the writes
+
All the indexes
+
All the queries

Even a very large machine eventually reaches a limit.

So we have a new question:

How can we divide the data?

This leads us first to:

Step 2E: Partitioning

Partitioning means dividing a large dataset into smaller logical pieces.

Suppose we have:

1 Billion Messages

We could divide them by time:

Messages

January   → Partition 1
February  → Partition 2
March     → Partition 3
April     → Partition 4

Or maybe by user ID:

Users 1–1M       → Partition 1
Users 1M–2M      → Partition 2
Users 2M–3M      → Partition 3

Conceptually:

             Database
                ↓
      ┌─────────┼─────────┐
      ↓         ↓         ↓
Partition 1 Partition 2 Partition 3

The important point is:

We are dividing the dataset into manageable pieces.

This can make large datasets easier to manage and, depending on access patterns, can improve query efficiency.

But notice something important.

Those partitions may still exist on:

ONE DATABASE SERVER

Conceptually:

        Database Server
        ┌───────────────┐
        │ Partition 1   │
        │ Partition 2   │
        │ Partition 3   │
        │ Partition 4   │
        └───────────────┘

We divided the data logically.

But that one machine may still have to handle all the traffic.

So eventually we ask:

Can we distribute those pieces across multiple database servers?

Now we reach:

Step 2F: Sharding

Sharding means distributing portions of the dataset across multiple database nodes.

A useful distinction:

Partitioning = divide the data
Sharding = distribute those partitions across machines

Instead of:

                  Database
                     ↓
                All User Data

we might have:

Application
     ↓
Shard Routing Logic
     ↓
┌────────────┬────────────┬────────────┐
│  Shard 1   │  Shard 2   │  Shard 3   │
│ Users      │ Users      │ Users      │
│ 1–1M       │ 1M–2M      │ 2M–3M      │
└────────────┴────────────┴────────────┘

Now:

User 100
   ↓
Shard 1

User 1,500,000
   ↓
Shard 2

User 2,500,000
   ↓
Shard 3

Instead of one database handling:

All users
All writes
All storage

we distribute them:

Shard 1 → some users + some traffic
Shard 2 → some users + some traffic
Shard 3 → some users + some traffic

Now we are scaling the database horizontally.

How Do We Decide Which Shard Gets the Data?

We need something called a:

Shard Key

Suppose we choose:

user_id

We might do something conceptually like:

hash(user_id) → shard

For example:

User A → Shard 1
User B → Shard 3
User C → Shard 2
User D → Shard 1

A good shard key should distribute:

Data
and
Traffic

relatively evenly.

New Problem: Hot Shards

Now suppose we make a poor choice.

We shard by geography:

US     → Shard 1
Europe → Shard 2
Asia   → Shard 3

But our user distribution is:

US     → 80%
Europe → 10%
Asia   → 10%

Then:

Shard 1
████████████████████ 80%

Shard 2
██ 10%

Shard 3
██ 10%

We technically have three shards.

But Shard 1 is still overloaded.

This is called a:

Hot Shard

This example shows why shard-key selection matters.

So sharding solved:

One database handling everything

but introduced:

Shard-key design
Hot shards
Routing complexity

And there is another problem.

New Problem: Queries Across Multiple Shards

Suppose you ask:

Show conversation history for user 123

Easy.

We know:

user 123 → Shard 1

So:

Query → Shard 1 → Result

But what if we ask:

Find the 100 most active users in the entire system

Now data may exist across:

Shard 1
Shard 2
Shard 3
Shard 4
...

So we may have to do:

                Query
                  ↓
       ┌──────────┼──────────┐
       ↓          ↓          ↓
    Shard 1    Shard 2    Shard 3
       ↓          ↓          ↓
     Result     Result     Result
       └──────────┼──────────┘
                  ↓
            Merge Results
                  ↓
             Final Result

This is often called:

Scatter-Gather

and it can be much more expensive.

Again:

Scaling solves one problem and introduces another.

One More Problem: Rebalancing

Suppose we initially have:

4 shards

Traffic grows.

Now we need:

8 shards

We cannot simply create four empty shards and be done.

Some existing data may need to move:

Shard 1 data → Shard 5
Shard 2 data → Shard 6
...

This is:

Rebalancing

Moving a large amount of data while keeping the application available can be difficult, which is one reason not to jump to sharding too early.

So Our Database Evolution Now Looks Like This

Stage 1
App
 ↓
Single Database

Traffic grows.

Stage 2
Optimize queries
Add indexes
Tune connections

Still growing.

Stage 3
Vertical Scale Database
More CPU
More RAM
Faster Storage

Need availability:

Stage 4
Primary
  ↓
Replicas

Read traffic increases:

Stage 5

Writes → Primary

Reads  → Replica 1
         Replica 2
         Replica 3

Dataset/write traffic becomes too large:

Stage 6
Partition the data

One node still cannot handle it:

Stage 7
Shard across multiple database servers

Now:

Users
  ↓
Load Balancer
  ↓
Multiple App Servers
  ↓
Database Routing
  ↓
┌────────┬────────┬────────┐
Shard 1  Shard 2  Shard 3

At this point we have scaled:

Application layer ✔
Database read layer ✔
Database storage layer ✔
Database write layer ✔

And now the next very natural problem appears:

Even with a scalable database, why should we repeatedly hit the database for the same frequently requested data?

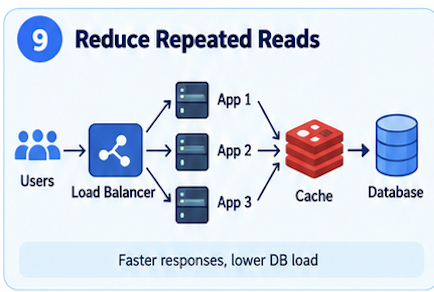

Cache

The next most natural component to introduce is a Cache.

Why? Because even after scaling the database, we may still be doing the same expensive reads repeatedly.

For example, imagine thousands of users repeatedly request:

GET /products/123
GET /profile/456
GET /configuration

Without a cache:

Every request reaches the database.

Even if the database is scalable, that's unnecessary work.

So we introduce:

The flow becomes:

Request
  ↓
Check Cache
  ↓
Cache Hit?
 ┌───────┴────────┐
Yes               No
 ↓                 ↓
Return          Database
                   ↓
                Result
                   ↓
              Update Cache
                   ↓
                Return

Caching is introduced as a way to reduce repeated expensive reads, improve latency, reduce database pressure, and reduce expensive computation.

NOTE: In general, a cache read may take around 1 ms or less, while the same request from the database may take 10–20 ms or more depending on the system.

Then the cache itself becomes a scaling problem

Initially we might have:

But with 100K users, one cache server may become overloaded.

Now we can ask exactly the same System Design question:

What happens when the cache becomes the bottleneck?

Suppose one cache server has:

16 GB memory

but our working dataset becomes:

100 GB

or it receives:

200,000 requests/sec

One cache node may no longer be enough.

So we scale the cache horizontally:

                Cache 1
               ↗
Application → Cache 2
               ↘
                 Cache 3

Now we need a way to decide:

key A → Cache 1
key B → Cache 3
key C → Cache 2

This naturally introduces concepts such as:

• Cache partitioning
• Consistent hashing
• Cache replication
• Eviction
• TTL
• Cache invalidation
• Cache stampede

trade-off: caching gives us speed, but adds complexity around freshness and consistency.

So our system evolution becomes:

STEP 1
Application bottleneck
       ↓
Multiple App Servers
       ↓
Load Balancer

Cache Memory Is Limited

Even after distributing the cache, memory is still finite.

Suppose our cache can hold:

1 million entries

but the application eventually accesses:

10 million entries

We cannot keep everything.

Something has to leave.

That introduces:

Cache Eviction

Cache eviction answers:

When the cache is full, which item should we remove?

Three common strategies.

LRU — Least Recently Used

Remove data that hasn't been accessed recently.

Recently used → Keep
Not used recently → Remove

Why it is common:

• simple
• works well for many workloads
• keeps recently used items in memory

LFU — Least Frequently Used

Remove data that is accessed least often.

Popular → Keep
Rarely accessed → Remove

FIFO — First In, First Out

Remove older entries first.

There is no universally correct eviction policy.

It depends on the workload.

Problem 5: Cached Data Can Become Stale

Suppose the cache contains:

User name = Alice

The user changes their name:

Alice → Alicia

The database now contains:

Alicia

but the cache still contains:

Alice

Now:

Database → Alicia
Cache    → Alice

We have a:

Cache Invalidation Problem

We need to decide:

When should cached data be removed or updated?

One possible mechanism is:

TTL — Time To Live

We give the cache entry an expiration time.

For example:

user:101
TTL = 5 minutes

After five minutes:

But TTL creates another trade-off.

OR

Home feed → 30-second TTL
Profile card → a few minutes
Trending list → 60-second TTL

After the TTL expires, the next request misses the cache, fetches fresh data from the database, and updates the cache.

Good for:

• data that can tolerate being slightly stale
• simple cache management
• feeds, trending lists, recommendations

Trade-off:

• simple to implement
• but stale data may still be shown until TTL expires

versus:

There is no magic TTL.

It depends on:

• How frequently does the data change?
• How bad is stale data?
• How expensive is rebuilding it?
• How much backend traffic can we tolerate?

Problem 6: What Happens When a Popular Cache Entry Expires?

Now imagine we cache:

trending-products

and millions of users request it.

Everything is working:

Then at exactly 10:00 AM:

TTL expires

At the same time:

10,000 requests arrive

Every request asks:

So suddenly:

This is a:

Cache Stampede

also called a Thundering Herd.

Possible approaches include:

• Only one request refreshes the cache
• Serve slightly stale data while refreshing
• Add randomness/jitter to TTL values
• Refresh popular entries before they expire

For example:

Rather than:

STEP 2
Database bottleneck
       ↓
Indexes / Vertical Scaling
       ↓
Replication / Read Replicas
       ↓
Partitioning / Sharding

STEP 3
Repeated database work
       ↓
Introduce Cache
       ↓
Cache becomes bottleneck
       ↓
Distributed Cache

Active / Explicit Cache Invalidation

When the underlying data changes, the application explicitly removes or updates the cache entry.

Example:

user changes profile photo → invalidate profile:user123
permission changes → invalidate related authorization cache immediately

Good for:

• data that must stay correct
• privacy, permissions, balances, critical user state

Trade-off:

• fresher data
• but more application complexity

TTL or Active Invalidation — Which One Should We Use?

The best answer is:

It depends on the type of data, and in many systems we use both.

A very simple rule:

Use TTL when:

• slightly stale data is acceptable
• the data changes frequently
• simplicity is important
• examples: home feed, trending list, recommendation list

Use Active Invalidation when:

• stale data is dangerous
• correctness matters more than simplicity
• examples: privacy settings, permissions, account state, subscription status

Common practical approach:

Use TTL for less critical data, and use active invalidation for correctness-sensitive data.

TTL is easier, but explicit invalidation is safer for critical data.

We started with the simplest possible architecture: a small number of users, one application server, and one database. As traffic grew, the application became the first bottleneck, so we explored vertical scaling and then horizontal scaling. Horizontal scaling introduced the need for a Load Balancer, which led to deeper design questions such as health checks, routing algorithms, session handling, Layer 4 vs. Layer 7 load balancing, and Load Balancer high availability.

As the system continued to grow, the database and repeated reads became new bottlenecks. We addressed these through database optimization, replication, read replicas, partitioning, and sharding, and then introduced caching to reduce latency and backend load. Scaling the cache introduced its own challenges, including cache partitioning, consistent hashing, replication, eviction, TTL, cache invalidation, cache stampede, and hot keys. The key lesson is that System Design evolves step by step: identify the bottleneck, introduce a solution, understand its trade-offs, and then solve the next problem.
